Skystars Angela145: 4K FPV race drone

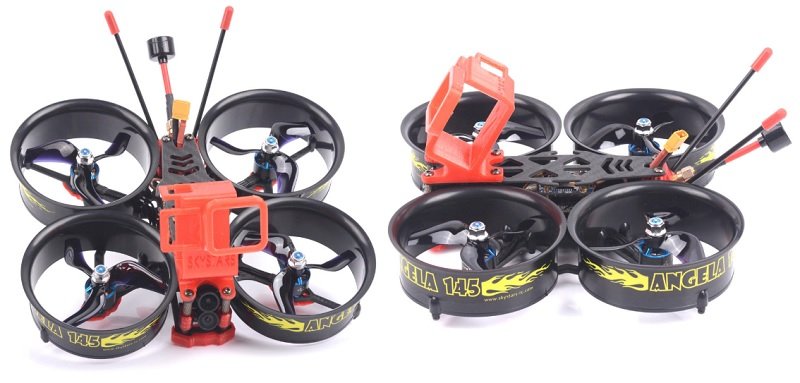

Skystars’ new Angela145 FPV race drone features large ducted blade protectors and Runcam Hybrid 4K camera. Furthermore, it comes with a GoPro camera mount which makes it a quite versatile Cinewhoop.

The 145mm size frame comes installed with 3800KV brushless motors and 3″ GemFan propellers. The 1408 type motors are driven by a 4in1 35A ESC. All electronic parts are 3-4s battery rated. The manufacturer suggests to use 1500-1800mAh LIPO packs.

According to your existing transmitter, you can opt to purchase the Skystars Angela145 in bundle with Frsky XM+, Frsky R-XSR or Frsky R9MM radio receiver.

Skystars Angela145 highlights

  • 145mm size carbon fiber frame with large Whoop style blade protectors;
  • F4 Flight Control Board (D-Shot Version);
  • 35A 2-4S Blheli_S 4in1 ESC;
  • 1408 type 3800KV brushless motors;
  • Gemfan 3 Inch propellers;
  • Runcam Hybrid 4K FPV Camera;
  • GoPro action camera mount;
  • Status LED strip;
  • Optional Frsky XM+, Frsky R-XSR or Frsky R9MM receiver;
  • Recommend 3-4S 1500-1800mAh Lipo battery.

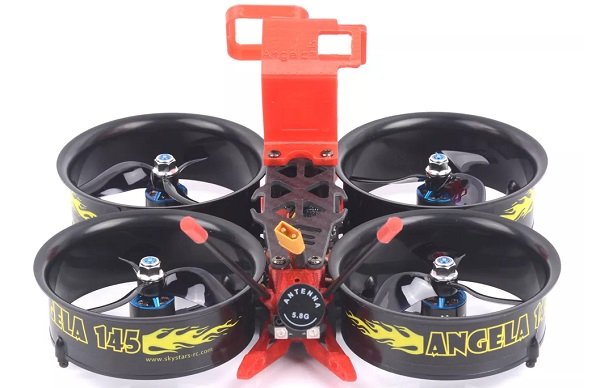

Skystars Angela145 main parts

Skystars Angela145

Angela145 145mm Frame Kit specs

  • Wheelbase: 145mm;
  • Material: 3K Carbon fiber;
  • Arm Plate Thickness: 3mm;
  • Thickness of top plate: 2mm;
  • Thickness of bottom plate: 3mm;
  • Screws: YFS 12.9 class screw;
  • Large ducted nylon propeller guards;
  • Weight: 128 grams.

F4 Flight Control Board (D-Shot Version)

  • MPU: 6000;
  • CPU: STM32F405RGT6;
  • Input Voltage: 2-4S Lipo;
  • Built-in Betaflight OSD to adjust PID;
  • BEC Output: 5V@2A;
  • Support Subs/PPM/DSMX receiver;
  • Size: 20 x 20mm (2mm mounting holes);
  • Weight: 4 grams.

35A 2-4S Blheli_S 4in1 speed controller;

  • Input Voltage: 2-4S Lipo battery;
  • Constant Current: 35A;
  • Burst Current: 38A;
  • BEC Ouput: NO;
  • Firmware: BLhelis;
  • Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150/300/600, forward and reverse;
  • Size: 27 x 27mm (20x20mm mounting holes);
  • Weight: 4 grams.

5.8G/48CH video FPV transmitter (VTX)

  • Output power: 25mW/200mW/500mW switchable;
  • Frequency: 5.8GHz 5 bands 48channels;
  • Control mode:button OR Channel changes and Pitmode setting;
  • BAT: 7-26V,BEC 5V-1A;
  • 145mA—-500mW;
  • Video system: NTSC/PAL;
  • Antenna: IPEX;
  • Mounting Hole: 20x20mm;
  • Weight: 3.2 grams.
