Flight TurboBee 160RS Toothpick racing FPV drone

iFlight TurboBee 160RS

iFlight’s new TurboBee 160RS racing FPV drone features toothpick style design. The frame has a 165mm wheelbase and scratch-X form factor. At the end of each arm, there is a XING 1404 3800KV motor matched with a 2-leaf 4″ propeller.

The iFlight TurboBee 160RS is based on a versatile SucceX Micro F4 F1.5 flight tower with 15A 4-in-1 ESC board. Its onboard FPV camera is paired with SucceX Micro300mW VTX. The drone can be powered by batteries from 2s to 4s LIPO.

Sponosored AD

iFlight TurboBee 160RS features

  • Robust Toothpick style carbon-fiber frame;
  • Light, Powerful and Smooth configuration;
  • SucceX Micro F4 F1.5 flight tower (FC+12A ESC+PDU);
  • XING 1404 3800KV brushless motors;
  • SucceX Micro300mW VTX;
  • Optional FrSky R-XSR, FrSky XM+ or TBS Crossfire Nano RX radio receiver;
  • 2-4s Lipo/LIHV compatible.

160RS frame specs

  • Wheelbase: 165mm;
  • Standoff height: 25mm;
  • Bottom Plate thickness: 2.5mm;
  • Top plate thickness: 4mm;
  • Flight control mounting holes: 16 * 16mm / 20 * 20mm;
  • Support camera size: 14 * 14mm nano camera;
  • Motor mounting holes: 14xx series (9mm);
  • Propeller size: 4 inch;
  • Body size: 123 x 111 mm;
  • Weight: 29.9 grams.

iFlight TurboBee 160RS details

Dimensions
Dimensions
Main parts
Main parts
Flight tower (main electronics)
Flight tower (main electronics)
FPV Camera
FPV Camera

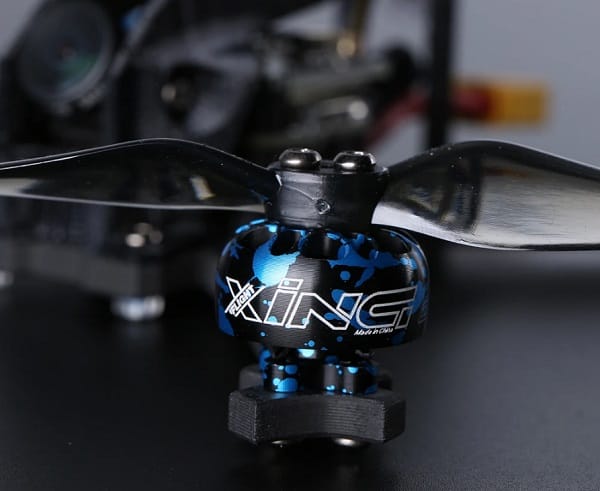

XING 1404 3800KV Motors
XING 1404 3800KV Motors
