Foxeer T Rex Micro 1500TVL Low Latency FPV camera

Photo of Foxeer T Rex Micro camera

The Foxeer T-Rex Micro is a new CMOS FPV camera that features Super-WDR, Ultra-low latency of just 6ms, and 1500TVL resolution. The camera’s low-light performance was optimized for LED lights, in order to obtain the best image quality when you are flying through illuminated gates.

Thanks to its compact size (19 x 19 x 24.2mm), it can be successfully installed on micro to large FPV drones. The camera can be powered from 4.5 to 16V and it is available in black, white, and red colors.

#AD: Banggood drone sales

From its OSD menu, you can toggle between 16:9 and 4:3 aspect ratio and PAL/NTSC video formats in the settings, which makes it a great option for all kinds of FPV goggles and displays. The settings menu can be accessed using the 5D OSD keyboard or via camera-telemetry (if you wired it correctly to the flight controller)

Foxeer TRex Micro camera wiring to FC

Foxeer T-Rex Micro camera features and specs

  • Ultra-high resolution (1500TVL);
  • 2MP CMOS sensor;
  • Super-low latency (6ms);
  • 0.001Lux minimal illumination;
  • 110dB Super-WDR;
  • 4:3 FOV-H: 120° FOV-D:150° or 16:9 FOV-H: 155° FOV-D:175°;
  • Exclusive optimization for LED lights (flying in through LED gates);
  • Camera telemetry (remote control via FC);
  • Flight OSD (Supply voltage, and Elapsed time);
  • Wide range of input voltage (4.5~16V);
  • Size of 19 x 19 x 24.2mm.

Foxeer T-Rex Micro FPV camera review videos and sample footage

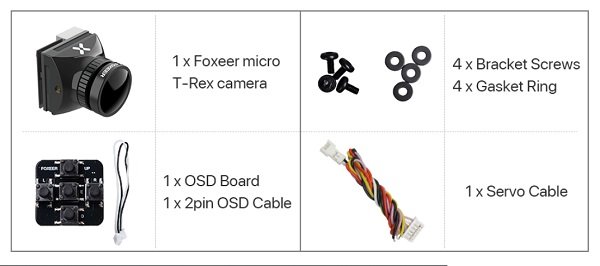

Box content

  • OSD Board;
  • 2pin OSD Cable;
  • Bracket Screws;
  • Gasket Rin;
  • Servo Cable;
  • Instruction guide.
