DJI AVATA: Beyond my expectations!

DJI Avata

DJI always tease us a few weeks before they officially release a new drone. Considering that DJI has a serious NDA Agreement with those who receive early test units for review, they would not risk leaking details or photos.

The DJI Avata is set to launch in the next few months and would be the Chinese company’s second FPV drone. Unlike other CineWhoop-style drones on the market, which go for the smallest possible size with the lowest possible weight, the DJI Avata looks like it will be a large-sized quadcopter. With a big battery pack and stabilized camera system, the Avata could weigh around 500 grams, 250 grams over the limit for which you can operate drones without much restriction – meaning that you will have to register with the FAA to fly it outdoors legally.

DJI AVATA Leaks and Rumors

Regarding camera performance, at least comparable capabilities to those of the DJI Mini 3 Pro are expected, i.e. 4K filming with 60 frames per second and photos at 48 megapixels. The mechanical gimbal stabilization will be a unique feature in its market segment.

Twitter leaks show that DJI Avata comes in a bundle with a new smaller DJI FPV Goggles and a one-handed motion controller. The community hopes that the AVATA will also be controllable with classic-style two-stick transmitters for more accurate control.

The leaked DJI Avata images we’ve seen so far show a high-capacity 14.76V/2420mAh (35.71Wh) battery that could allow about 20 minutes of flight time.

CineWhoop drones typically come with a GoPro-style mount that can be used with the GoPro 10 or GoPro Bones. The rumored photos of the DJI Avata do not show such mounting options, but there is nothing that a 3D printer could not solve :)

Key features

  • Immersive flight experience: When you combine Avata with the goggles and motion controller, flight becomes accessible to all. Experience the thrill of total immersion with unrivaled safety and control. Embrace your spontaneity and capture the world around you. Some of us were Born to Fly.
  • Agility Meets Toughness: Compact and lightweight, DJI Avata is nimble in tight spaces. Every aspect of its design was made for you to be bold. The built-in propeller guard means that if Avata comes in contact with an object, it can bounce back, stay in the air, and keep flying.
  • Portable and Ready for Adventure: Avata adopts a new innovative design with convenience in mind. It is more lightweight, compact, and easy to carry.
  • Turtle mode: Should Avata fall on its back, activate Turtle with a few simple taps and watch it spring back into action.
  • Downward Obstacle Sensing System: In addition to the built-in propeller guard, Avata features downward binocular vision and ToF infrared sensing for even greater safety. These sensors detect obstacles below and allow Avata to perform low-altitude or indoor flights.
  • Motion Controller for next-level piloting: With the DJI Motion Controller, an intuitive flight is in your hands. Squeeze the trigger and bolt forward or turn a corner with the swivel of your wrist. The controls are easy to use and provide a unique flying way. It is also compatible with the DJI FPV V2 controller.

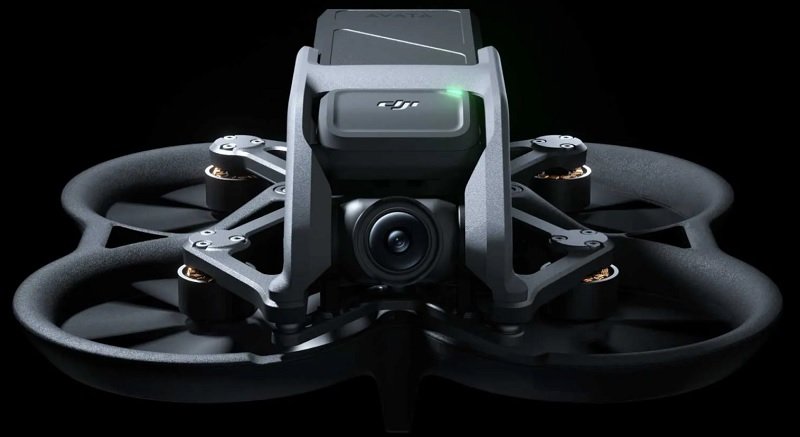

  • Breakthrough in FPV Visuals: Equipped with a 1/1.7-inch CMOS sensor, DJI Avata supports 4K ultra-wide-angle recording with an f/2.8 aperture. High-quality imaging performance delivers exceptional visuals that will keep your audience on the edge of their seats.
  • Smooth Shooting: Keep your footage stable as you swoop and dive with RockSteady 2.0 and HorizonSteady. These flagship technologies open a world of cinematic possibilities by reducing camera shake and ensuring smooth ultra-HD video.
  • Next-generation low-latency digital FPV: Avata features DJI’s flagship O3+ video transmission and 2T2R omnidirectional antennas for unrivaled stability and responsiveness during flight. Enjoy a crisp and smooth real-time view in your goggles, even in environments with interference.

Technical specifications

Takeoff Weight Approx. 410 g
Dimensions (L×W×H) 180×180×80 mm
Wheelbase 120 mm
Max Ascent Speed 6 m/s (Normal Mode, Sport Mode)
Max Descent Speed 6 m/s (Normal Mode, Sport Mode)
Max flight Speed 8 m/s (Normal Mode)
14 m/s (Sport Mode)
27 m/s (Manual Mode)
Max Hover Time Approx. 18 mins
Max Flight Distance 11.6 km
Max Video Transmission Range 10 km (FCC), 2 km (CE), 6 km (SRRC)
Max Wind Speed Resistance 10.7 m/s (Level 5)
Transmission Power (EIRP) FCC: < 33 dBm
CE: < 14 dBm
SRRC: < 30 dBm
Antennas Dual Antennas, 2T2R
Satellite positioning GPS + Galileo + BeiDou
Hovering Accuracy Range Vertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GNSS Positioning)
Horizontal:
±0.3 m (with Vision Positioning)
±1.5 m (with GNSS Positioning)
Internal storage 20GB
External storage microSD (up to 256 GB)
Recommended microSD Cards
SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Kingston Canvas Go! Plus U3 V30 A2 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung PRO Plus V30 U3 V30 A2 256GB microSDXC
Goggles compatibility DJI Goggles 2 and FPV Goggles V2
Sensing System ToF Effective Measurement Height: 10 m
Precise Hovering Range: 0.5-10 m
Vision Sensor Hovering Range: 0.5-20 m
Intelligent Flight Battery 2420 mAh, 14.76V (4S) Li-ion

Camera

Camera specifications

Image sensor 1/1.7-inch CMOS
Effective Pixels: 48 MP
Lens FOV: 155°
Equivalent Focal Length: 12.7 mm
Focal Length: 2.34 mm
Aperture: f/2.8
Focus Mode: FF
Focus Range: 0.6 m to ∞
ISO Range 100-6400 (Auto)
100-25600 (Manual)
Shutter Speed Video: 1/8000-1/50 s
Photo: 1/8000-1/50 s
Video Resolution With DJI Goggles 2:
4K@50/60fps
2.7K@50/60/100fps
1080p@50/60/100fpsWith DJI FPV Goggles V2:
4K@50/60fps
2.7K@50/60/100/120fps
1080p@50/60/100/120fps
Max Video Bitrate Max Video Bitrate
Color Mode Standard
D-Cinelike
EIS Supports RockSteady and HorizonSteady
Supports RockSteady and HorizonSteady Supports Normal Mode, Wide Mode, and Ultra Wide Mode
Gimbal specifications
Mechanical Range Tilt: -95° to 75°
Controllable Range Tilt: -80° to +65°
Stabilization Single-Axis (tilt)
Max Control Speed Max Control Speed
Max Control Speed Max Control Speed
Max Control Speed Real-time screen correction is unavailable during recording, but can be applied to the footage recorded on the drone.
