GEELANG LIGO78X PRO+: 2″ CineWhoop w/ Caddx Polar Vista

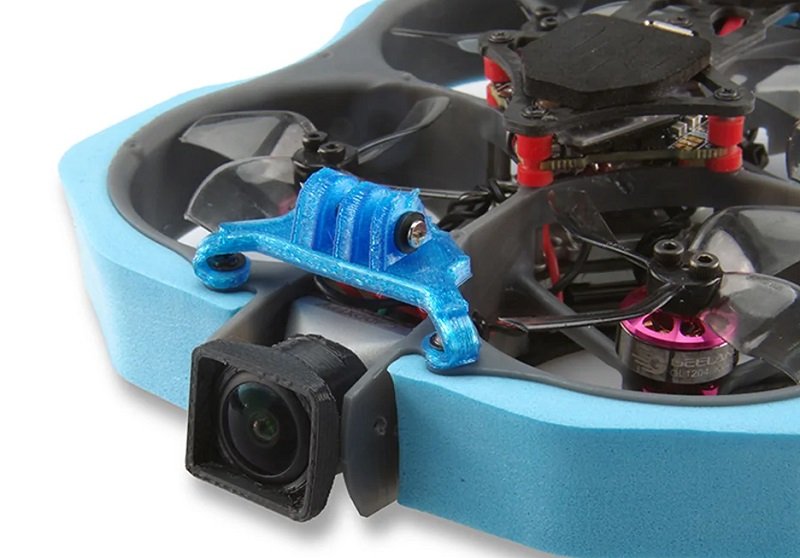

Photo of GEELANG LIGO78X PRO+ drone

GEELANG’s new LIGO78X PRO+ CineWhoop style FPV drone comes equipped with Caddx Polar Vista HD digital video transmission system and an F4 AIO flight controller with integrated 12A ESC. Despite its small size, it can carry a Naked GoPro, SMO 4K, or Firely X Lite camera.

The GEELANG LIGO78X PRO quadcopter is natively compatible with the DJI FPV transmitter. If you want to use a different radio system, you can opt for the following radio receivers: FlySky AFHDS 2A, FrSKy XM+, or TBS Crossfire Nano RX radio receiver.

Its GL1204 KV5000 motors are equipped with 4-leaf 2″ propellers. You can power it with a 4S 450-850mAh battery.

GEELANG LIGO78X PRO+ core features

  • CineWhoop style design with injection molding material (78mm wheelbase);
  • Ghf412 FC F411 AIO flight controller with integrated 12A ESC and black box;
  • GL1204 KV5000 brushless motors with Gemfan 2020 propellers;
  • Caddx Polar Vista digital FPV system;
  • Can carry an SMO 4K, Insta360 GO2, Nakes GoPro6, 7, 8 or Firely x Lite camera;
  • Optional FlySky AFHDS 2A, FrSKy XM+, or TBS Crossfire Nano RX radio receiver;
  • 4S LIPO compatible (XT30 plug, 450-850mAh recomanded);
  • Total take-off under 250 grams.

Tehnical specifications

specs

Flight controller

  • Name: Ghf412 FC F411
  • MCU: STM32F411C (100MHZ)
  • Sensor: MPU-6000 (SPI connection)
  • Shop: 8MB black box onboard
  • Board size: 28.5 * 28.5MM
  • Power supply: 2-4S battery input (DC 7-17V)
  • Built-in Betaflight OSD (SPI control)
  • Integrated 12A ESC
    • Built-in voltage detection
    • Onboard 4in1 ESC Onboard 4in1 ESC MCU upgraded to EFM8BB21
    • Factory firmware: G_H_30_REV16_7.HEX
    • Default protocol: DSHOT600
  • Power input: XT30

Motors

  • Model: GL1204 KV5000
  • Stator specifications:D12 * H4 0.2mm
  • Configuration:9N12P
  • Stator Diamter:12mm
  • Stator Length:4mm
  • Shaft Diameter:Φ1.5mm
  • Motor Dimension(Dia.*Len):Φ16.0mm*15.8mm
  • Magent specifications: N52H
  • Shift specifications: 2mm High strength steel
  • Bearing Specifications: d2*D5*H2.5 MR52zz Japan ISC Custom made
  • WindingSpecifications:180℃ Class Multiple oxygen-free coppers
  • No. of Cells(Lipo):3S-4S
  • Weight(g):5.8g
