HBX64 micro brushless Whoop under $100

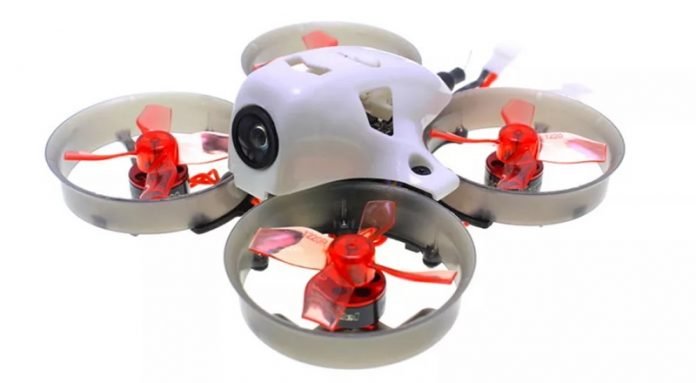

HBX64 FPV quadcopter

Like most micro FPV drones, the HBX64 also features ducted blade protectors. In addition to the better motor efficiency, the Whoop design also makes the aircraft much safer for indoor practice.

The 16000KV brushless motors are equipped with 4-leaf propellers and driven by 10A BLHeli_S ESC. According to the advertised specs, the HBX64 quadcopter has about 3 minutes flight time with 2s/250mAh battery and up to 6 minutes with 2s/450mAh one.

In front of the HBX64 drone there is a 800TVL camera with 150 degree field of view. Thanks to the SmartAudio, you can adjust bands/channels and transmission power remotely.

HBX64 quadcopter features & specs

  • 64mm sized frame with protective canopy;
  • Tiny Whoop alike blade protectors;
  • F3 flight controller w/ built-in OSD and OMBS firmware;
  • S0802 16000KV brushless motors;
  • 10A BLHeli_S Dshot600 ESC;
  • 800TVL camera with 150° FOV;
  • 48CH/5.8G video transmitter w/ SmartAudio (0/25/100/200mW);
  • 3-6 minutes flight time (2S 250-450mAh);
  • Optional FS-RX2A, DSMX Pro or FrSky D8 radio receiver.

HBX64 design
