HGLRC Parrot120 Pro Toothpick FPV Drone

HGLRC Parrot120 Pro FPV drone

As its name says, the HGLRC Parrot120 Pro is a Toothpick style 120mm FPV racing machine. HGLRC puts the most high-end race spec components on the Parrot120 Pro. It comes with versatile F4 flight controller, powerful 6000KV motors and high-quality Caddx Turbo Eos2 camera.

The Parrot120 Pro Toothpick is small enough to fly through your house or car park, but packs enough punch for real outdoor racing competitions. In case of crashes, electronic parts are all well protected by the 3D printed TPU canopy. The HGLRC FD Mini VTX features up to 400mW which should be among the longest FPV flights.

HGLRC Parrot120 Pro features

  • 120mm size, Toothpick style carbon fiber frame (Arm Thickness);
  • HGLRC FD411 Flight Controller;
  • FD13A BL_S 2-4S 4in1 ESC (DSHOT600/300/150/Oneshot125/42, MultiShot, PWM);
  • HF1106 6000KV brushless motors;
  • Gemfan 2540 2.5″ 3-leaf propellers;
  • Caddx Turbo Eos2 FPV Camera;
  • HGLRC FD FPV transmitter (up to 400mW VTX power);
  • Optional FlySky FS-A8S V2 or FrSky XM+ radio receiver.

HGLRC Parrot120 Pro main parts

HGLRC Parrot120 Pro main parts

HGLRC FD411 Flight Controller specs

  • MPU: MPU6000-SPI;
  • CPU: STM32F411CEU6;
  • Black Box: NO;
  • Input Voltage: 2-4S Lipo;
  • Built-in Betaflight OSD to adjust PID;
  • BEC Output: 5V 2A;
  • Support SBUS/PPM/DSMX/iBUS receiver
  • Size: 21 x 21mm (installing Hole: 16x16mm, M2);
  • Weight: 2.7g.

HGLRC FD411 FC specs

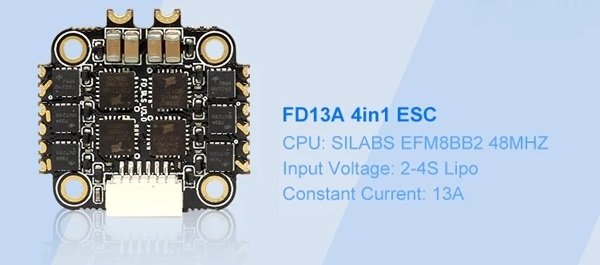

HGLRC FD13A ESC specs

  • Input Voltage: 2-4S Lipo;
  • Constant Current: 13A;
  • Burst Current: 15A (5S);
  • BEC Ouput: NO;
  • CPU: SILABS EFM8BB2 48MHZ;
  • MOS Tube: TOP QUALITY MOSFET;
  • Support Damped Mode: DSHOT600/300/150/Oneshot125/42, MultiShot, PWM;
  • Size:23x24mm (installing holes: 16x16mm, M2);
  • Weight: 3.2g;

HGLRC FD13A ESC specs

HGLRC FD Micro VTX specs

  • Input Voltage: DC 5V;
  • Output Power: PIT/25mW/100mW/200mW/400mW Switchable;
  • PIT———0dBm——70mA;
  • 25mW—–14dBm—–150mA;
  • 100mW—-20dBm—–210mA;
  • 200mW—-23dBm—–280mA;
  • 400mW—-26dBm—–360mA;
  • Antenna: IPEX;
  • Size: 20x20mm (installing holes: 16x16mm, M2);
  • Weight: 1.5g.
