Eachine E33W quadcopter drone for first time pilots
Last month Eachine announced two new entry-level drones, this E33W and another one with foldable arms. When it comes to beginners I always recommend to start with small and inexpensive multi-rotors.
Eachine E33 is offered in two variants, one without camera and one with WiFi FPV camera. Surely, for extra $12, the fact that you can record the journey of your flights and also display the Eachine E33W’s live-video feed on your smartphone is a nice feature.
One of the biggest risk of purchasing RC toys from unknown brands is if something brakes and you need to repair it. Over the time Eachine proved to offer great after sale support through spare parts availability.

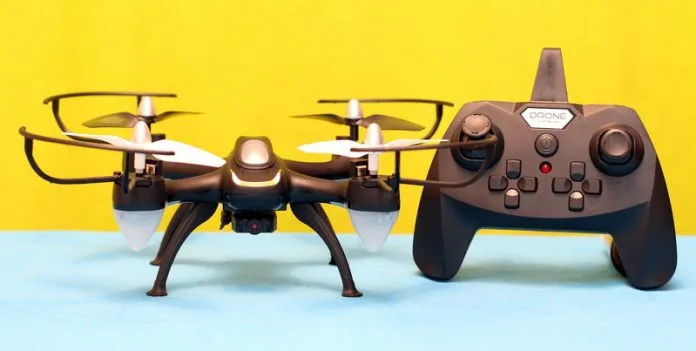

Eachine E33W quadcopter review
Although my readers are used with very detailed reviews, this time I need be more expeditious because another two products from Banggood are waiting to be tested.

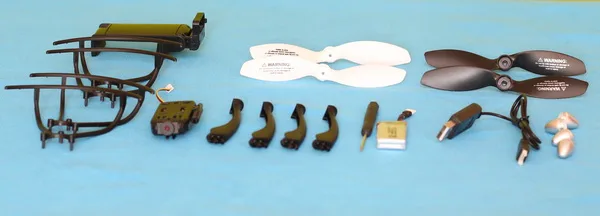

The Eachine E33W comes in a compact box. Inside you’ll find the drone itself, a remote controller, a phone holder, four landing gears, 1 set of spare propellers, a USB charger, a screwdriver, bag of screws and user manual. In order to fly the drone in FPV you’ll need to bring your own smartphone or tablet.
The aircraft measures about 26 by 26 by 11 centimeters and weighs 104 grams (fully equipped), so you will probably don’t need to register with the FAA before taking it up into the air 🙂
It comes with attached propellers and ready to fly. The camera, landing gears and propellers are optional. Even with camera mounted, it has enough ground clearance without landing gears.
The design of the cockpit is very similar with the one JJRC X2 has. The 450mAh Li-Po battery is loaded from the bottom of the aircraft.

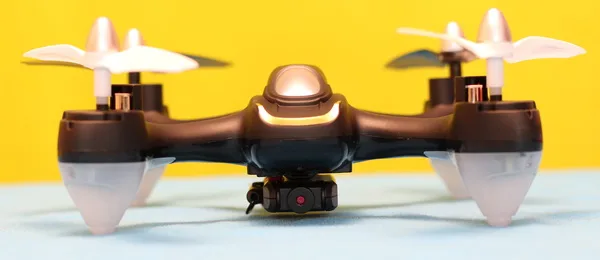

In order to allow better visibility on the orientation of the aircraft, the Eachine E33W has blue LEDs in front and red ones on back. The props also have different colors, white in front and black on rear.
2Eachine E33W drone highlights
- Suitable for both indoor and outdoor flights;
- 6-axis gyro stabilization;
- Multiple flight speed rates;
- Multiple control modes (physical RC, virtual sticks and Gyro);
- Headless flight mode;
- One key return to home (not GPS!);
- Motor anti-stuck protection;
- WiFi FPV (real-time image transmission);
- About 8-10 minutes of play time.
3Transmitter / Remote controller

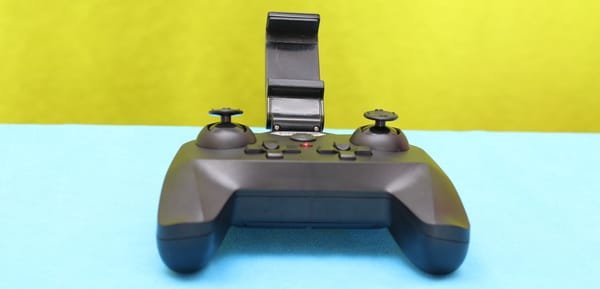

The gamepad style remote controller is completely black without any status LCD.
Additional to the usual control sticks and power switch you can find other 8 buttons on the front panel. While the left shoulder button allows to toggle between speed rates, the right one enables the 3D eversion mode (360 degree flips).
The RC comes with “mode 2″ layout – the left stick (throttle) controls altitude and the way the aircraft points, while the right stick controls speed and direction.
In order the attach your smartphone on top of the transmitter, you need to install the included phone holder.

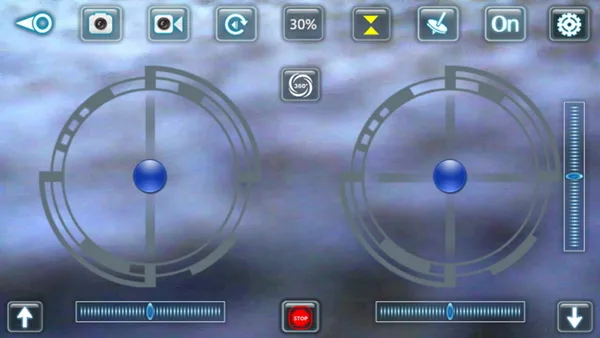

While in the specifications of the E33W drone there is nothing mentioned about the APP control, after I installed the suitable application (WiFi UFO) I found out that actually I can control it in 3 ways:
- PPsychical remote controller;
- Virtual sticks (APP);
- Gyro mode (by tilting my smartphone).
Anyway, in my opinion the most accurate way to control the movements of the aircraft is through the transmitter.
4Camera and Wi-Fi FPV

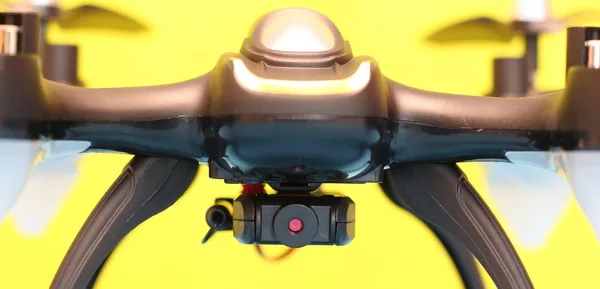

The 0.3 camera comes with 3-pin connector and it is easily removable. Angle of the lens is slightly adjustable. The Wi-Fi camera weights about 8 g and there is no micro SD card required. The captured photos and videos are stored on the smartphone’s internal memory (under the “drone” folder).
The image quality from the E33W camera is decent enough for a $40 toy-grade drone. However, this Eachine model is not an aerial photography platform that you’d use for a professional video production (or even hobbyist one).
Two minutes of recorded video (640×480@15fps) occupies about 5MB. Yes, the resolution is even worse than 720P.
Checking the box, I found out that there is a third version of this model that comes with 2MP camera and it is called “Eachine E33C”.
5Test flight – Control range and flight autonomy
On low speed rate, the E33W is slow and can be easily taken by the slightest breeze. Switching to “high” speed, the aircraft becomes more agile and wind resistant.
The Wi-Fi FPV has serious latency so it can’t be used for full FPV flights (with VR headset). FPV range is also shorter than actual control rage.
Under optimal conditions, BG says the Eachine E33W can stay airborne for up to 10 minutes but of course, real-world conditions aren’t always optimal. I got an average of 5-6 minutes of play time. Removing the camera and propeller protectors you can probably earn extra 1-2 minutes.
6Should you buy it?
- Price–performance ratio
- Build quality
- Flight performance
- Flight time

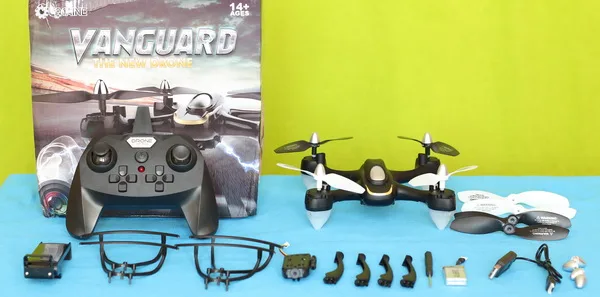

Without a doubt, Eachine E33W is not the best quad that you can find but for its price tag it does exactly what promises: decent flight time paired with basic WIFi FPV camera.
My only disappointing was regarding the lack of alt-hold. Most of the current toy-drones offer this feature.
User Review( votes)
Those who are interested in this learn-to-fly drone should know that can be found here ($37.99 including free shipping). If you are not interested in FPV flights, the basic edition (E30) costs only $25.99.
- Affordable drone with WiFi FPV;
- Included propeller protectors;
- Decent flight time;
- Multiple control modes;
- Nice sporty flyer.
- Low video quality;
- Low frame rate;
