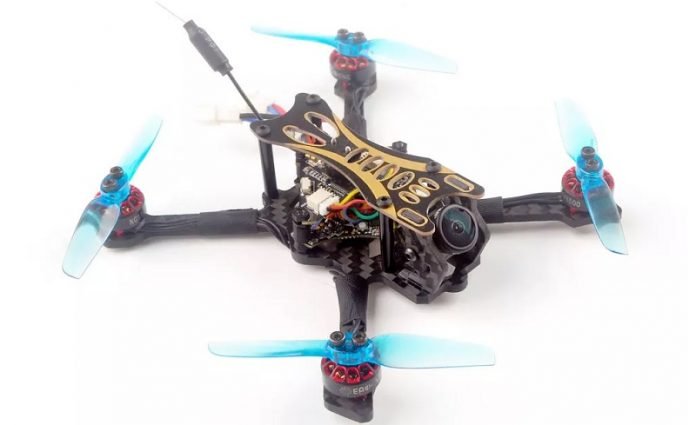

Eachine Novice-II entry level FPV drone

Eachine Novice-II entry level FPV drone

Similar to the Novice-I, the Eachine Novice-II is also ready to fly out of the box. While the first generation Novice-Whoop comes with VR005 goggles, the second generation is equiped with VR009 headset. Both versions are packed with same type of WT8 remote controller.

The Eachine Novice-II drone measures 100 x 100 x 40mm and has a wheelbase (motor to opposite motor distance) of 120mm. The take-off weight of the aircraft (without battery is just 50 grams). In order to allow easy maintenance, the KV8500 motors are equipped with connectors.

Sponosored AD

Eachine Novice-II highlights

  • Ready to fly out of the box (included RC & FPV goggles);
  • 120mm wheelbase;
  • Nano X F4 pro flight controller (built-in buzzer & LED strip ready);
  • On-board 4in1 5A ESC (S_H_50_REV16_7 firmware);
  • 1103 type KV8500 brushless motors;
  • Caddx EOS2 v2 FPV camera;
  • 5.8G/40CH video transmitter (25/200mW VTX power);
  • 2s LIPO compatible.

Eachine Novice-II versiones

Price & package options

Just like it predecessor, the Novice-II is also available in two package options. While the standard version with two batteries, WT8 remote controller and VR009 FPV goggles is advertised for $155, the ‘fly more combo’ pack with 10 batteries is sold for $175. Both versions come with same type of 6-way LIPO/LIHV battery charger and handbag.

Eachine Novice-II parts details

Eachine Novice-II parts specs

Nano X F4 Pro flight controller specs

  • MCU:STM32F411CEU6 (100MHZ, 512K FLASH);
  • Sensor: MPU-6000(SPI connection);
  • Power supply: 1-2S battery input (DC 3.5-8.7V);
  • Integrated 5A(each) Blheli_S 4in1 ESC Dshot600 ready;
  • Built-in Frsky D8 SPI receiver;
  • BetaFlight OSD (SPI Control);
  • Built-in Current meter Max 28A;
  • Current meter scale set to 1175;
  • Built-in 5V 1A BEC and Voltage detection;
  • Board size: 28.5 x 28.5 mm.

ESC board specifications

  • MCU upgraded to EFM8BB21;
  • Power supply: 2-4S LiPo/LiPo HV (7v/17v);
  • Current: 5A continuous peak 6A (5 seconds);
  • Support BLHeliSuite programmable;
  • Factory firmware: S_H_50_REV16_7.HEX;
  • Default protocol: DSHOT600.

EX1103 Motor specs

  • KV options: KV8500;
  • Configu-ration: 9N12P;
  • Stator Diamter: 11mm;
  • Stator Length: 3mm;
  • Shaft Diameter: Φ1.5mm;
  • Motor Dimension: Φ13.5mm*16mm (Dia.*Len);
  • Weight: 3.8 grams.

WT8 remote controller specs

  • Frequency:2.4Ghz;
  • Frequency Hopping: Latest FHSS(64 points,3.6ms);
  • Channels: 6 channels;
  • Resolution: 4096;
  • Transmission: ≤100mw (20dbm);
  • Distance: >1000m (depends on actual situation);
  • Working Voltage:4.2-6v(AAA1.5v*4);
  • Working current: 100-150mA;
  • Size:162*110*62mm.
