Coming soon: Geprc GEP-LSX5 Leopard

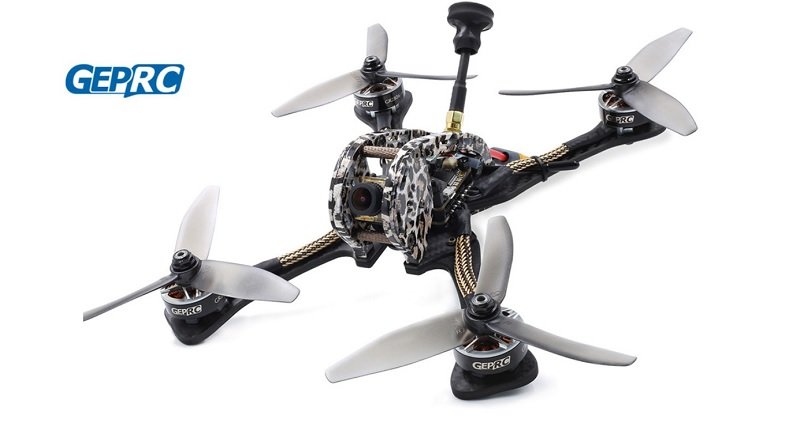

Geprc GEP-LSX5 Leopard FPV drone

After the Crocodile 7 GEP-LC7, GepRC is planning to release a new wild animal named racing drone called GEP-LSX5 Leopard. The 230mm size carbon fiber frame comes with leopard alike painted canopy.

Usually, the number (2, 3, 4, 5, 6 or 7) in the name of the drone means the propeller’s size in inches. So, while the Gep-LC7 is 7″ prop compatible, the GEP-LSX5 is only 5″. At the end of each 4mm arm there is a GR2306/2450KV brushless motors paired with GEP5040 3-leaf propeller. The Span F4 Tower features versatile Omnibus F4 flight controller and 40A rated ESC.

#AD: Banggood drone sales

As FPV system, GepRC opted for the low light optimised Caddx Ratel Starlight FPV camera and a 48CH video transmitter with up to 600mW broadcast power. Thanks to the VTX telemetry feature, you can adjust both channels and power remotely from your transmitter.

Geprc GEP-LSX5 Leopard features & specs

  • Robust carbon fiber frame with 230mm wheelbase and 4mm thick arms;
  • SPAN F4 Tower (Omnibus F4 flight controller & 40A BLheli_S 4in1 ESC);
  • GR2306 2450KV brushless motors with GEP5040 3-blade propellers;
  • 5.8G/48CH VTX with SmartAudio and adjustable power (25/200/600mW);
  • High quality Caddx Ratel 1200TVL camera;
  • Optional Frsky XM+ radio receiver;
  • 3-4s LiPo compatible (3S 1300mAh – 4S 1500mAh).

Geprc GEP-LSX5 Leopard SPAN F4 Tower

Geprc GEP-LSX5 Leopard flight controller pinout
