Coming soon: iFlight Cinebee Hybrid 4K FPV drone

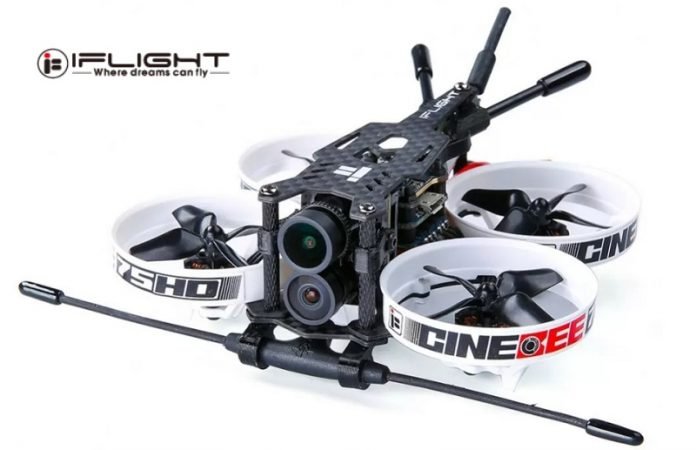

iFlight Cinebee Hybrid 4K

Although only 10 days have passed since FirstQuadcopter introduced RunCam’s latest dual-lens UHD camera, drone manufactures already started to install it on their FPV racers. The iFlight Cinebee Hybrid 4K is among the first models which comes on-board with the RunCam Hybrid 4K camera.

The Cinebee Hybrid 4K is a compact size Whoop style FPV racer made for tight space flying, a causal FPV racing quad for everyone, very safe for both indoor and outdoor. Despite its small size, iFlight puts high-end components on the Cinebee Hybrid 4K. It can be powered by 2s as well as by 3s batteries.

Sponosored AD

As radio options you have FrSky R-XSR, FrSky XM+ or TBS Nano SE receivers. There is also PNP version available (without receiver).

iFlight Cinebee Hybrid 4K highlights

  • 75mm size frame with large Whoop style prop protectors;
  • SucceX Micro F4 flight tower;
  • Micro 12A BLheli_S 4in1 ESC;
  • iFlight XING 1103 8000KV brushless motors;
  • RunCam Hybrid 4K dual lens camera;
  • Mirco 5.8G video transmitter (PIT/25/100/200mW VTX power);
  • Optional FrSky R-XSR, FrSky XM+ or TBS Nano SE radio receiver;
  • 2S/450mAh or 3S/450mAh battery suggested.

Cinebee Hybrid 4K main parts

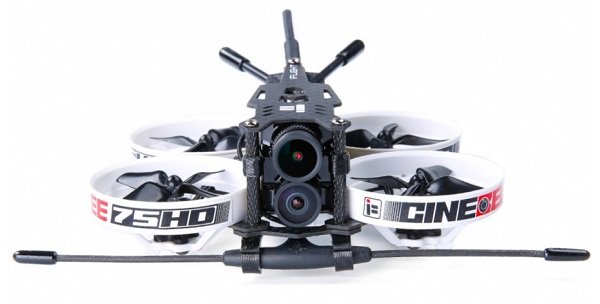

iFlight Cinebee Hybrid 4K main parts

iFlight SucceX F4 flight controller specs

  • CPU: STM32F411;
  • BetaFlight firmware (target: MATEKF411);
  • Input voltage 2-4S LIPO;
  • Gyroscope: MPU6000;
  • 2x UART ports and 4x motor outputs;
  • Built-in OSD;
  • No Blackbox FLASH;
  • BEC 5V 2A ;
  • Mounting holes: 16*16mm;
  • Size: 21*21mm;
  • Weight: 2.5 grams.

Micro 12A BLheli_S 4in1 ESC specs

  • MCU: BB21F16G;
  • Input voltage : 2-4S LIPO;
  • Continuous current: 12A;
  • ESC protocols: pwm, oneshot125, multishot, dshot150, 300, 600, etc;
  • Mounting holes: 16*16mm;
  • Size: 23*21mm;
  • Weight: 2.7 grams.

iFlight XING 1103 8000KV Motor specs

  • Configuration: 9N12P;
  • Stator Diameter: 11mm;
  • Stator Length: 3mm;
  • Shaft Diameter: 1.5mm;
  • Weight: 3.6 grams.

IFlight 5.8G VTX specs

  • Power : PIT/25/100/200mW;
  • Antenna interface : IPEX (UFL);
  • Telemetry: IRC Tramp (can be conveniently set up in your OSD);
  • Mounting holes: 16*16mm;
  • Size: 17*27mm;
  • Weight: 1.6 grams.
